Installing the D-Link DSL-G624T - Windows Vista
For information on the D-Link DSL-624T, please see Getting started with the D-Link DSL-G624T
Important Note: Before installing the D-Link DSL-G624T wireless router it's imperative that you establish a connection via the Ethernet cable first.
Follow the steps below to connect via Ethernet:
- Connect the Power cable.
- Connect the Blue Ethernet cable to your computer and router.
- Connect the Line cable to the ADSL port and then to the microfilter which should be connected to your telephone socket as well.
- Make sure that the Power, Ethernet and ADSL lights are switched ON and bright green.
Now open your Internet browser type in 192.168.1.1 in the Address bar.
- You'll now be required to enter the Username and Password to access the router Homepage. Please type in 'admin' for the username and 'admin' for the password.

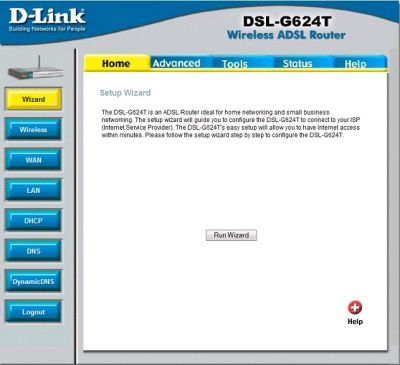

Once the Homepage has appeared click on Run Wizard.

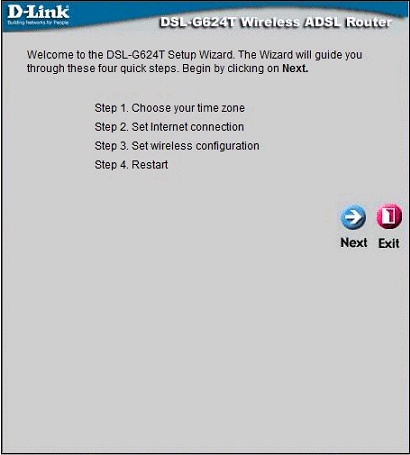

Click Next.

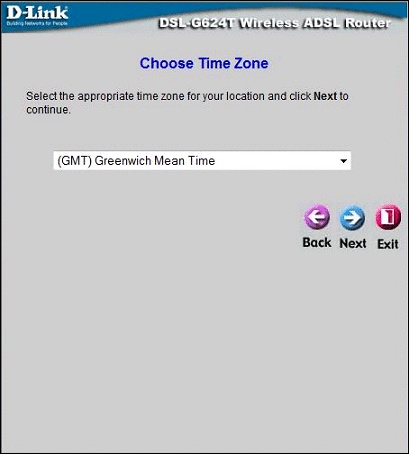

The time zone should be set to (GMT) Greenwich Mean Time. Click Next.

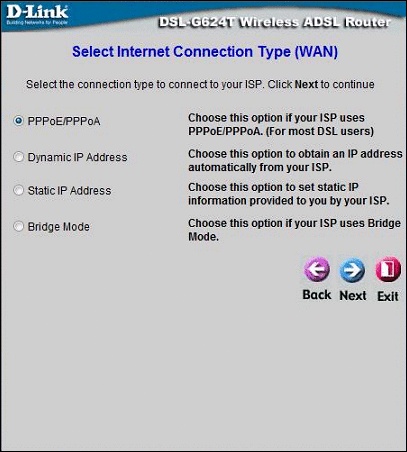

Make sure that PPPoE/PPPoA is selected. Click Next.

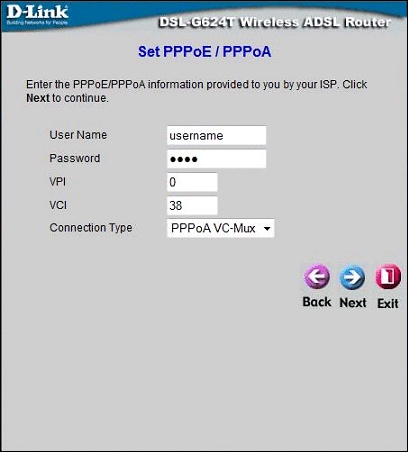

You'll be required to enter some basic information for your connection to work.
- Username is your Madasafish Broadband Username
- Password is your Madasafish Broadband Password
- VPI is 0
- VCI is 38
- Connection type is set to PPPoA VC-Mux
Click Next.

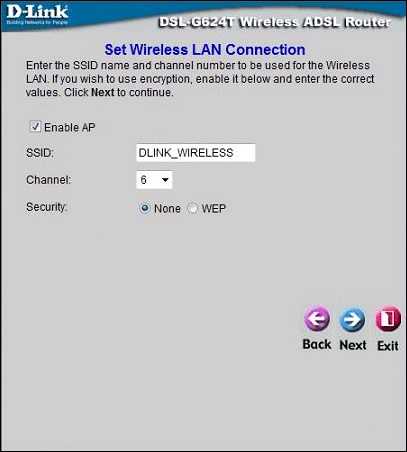

- The SSID is set to DLINK_WIRELESS by default.
- Channel is set to 6

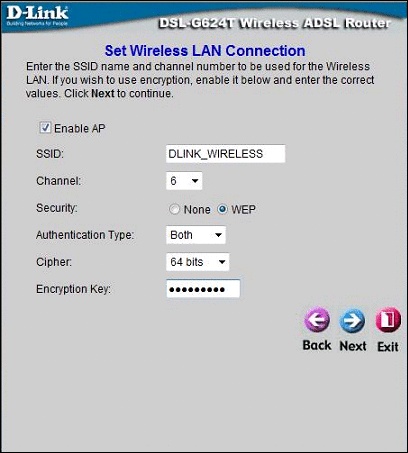

- Security is set to None by default. It's important to have security enabled when connecting wirelessly, please change this from NONE to WEP.
Your WEP Key needs to be in hexadecimal format, this means numbers from 0-9 and letters from A-F only.
Important Note: Please make a note of the WEP Key, you'll be asked to use it when you configure your computer for wireless access. Click on OK.
- If using 64bit then the WEP Key must be 10 characters long
- If using 128bit then the WEP Key must be 26 characters long
Click Next.

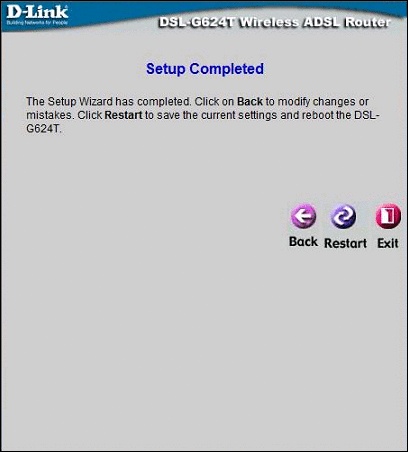

Click Restart to save all settings.
Your router is now set up and ready for use. However to connect wirelessly it is important to install the drivers for the AirPlus G for your connection to work accordingly.
Please see Installing the D-Link AirPlus G to install your wireless adapter.
