Installing the Voyager 1055 - Windows XP

Please ensure that you have the following items in the Voyager USB Wireless Adapter box:

  • One Voyager Wireless Adapter
  • One USB extender cable
  • Quick Start Guide & Installation CD

If you are installing this wireless adapter as part of a wireless network with a Router (e.g. Voyager 2110), you should connect and switch on the Router first.

Important
Only plug your Voyager Wireless Adapter into your computer when instructed to do so during the installation process.

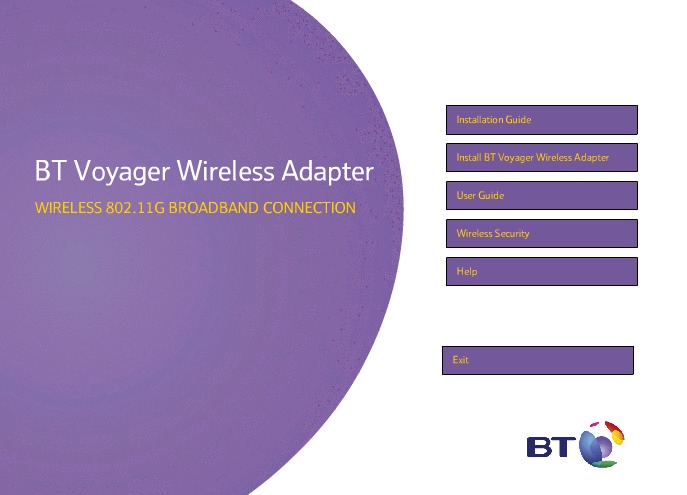

1. Insert the Voyager Wireless Adapter CD into your CD drive. After a few seconds the Voyager Wireless Adapter welcome screen will be displayed. (If the screen does not appear after a few seconds, select Run in the Windows Start menu and type D:setup where ‘D' is the letter for your CD-ROM drive.).

Click Install BT Voyager Wireless Adapter.

Installing Voyager 1055 USB 1

2. The Connection screen opens.

To install, click Install Now.

Installing Voyager 1055 USB 2

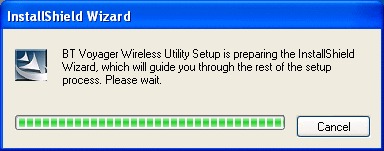

3. The Voyager Wireless Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process.

Installing Voyager 1055 USB 3

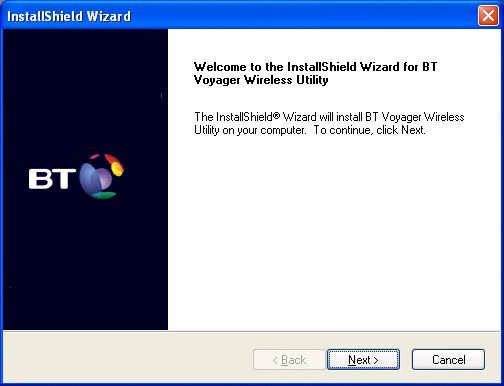

4. Welcome to the InstallShield Wizard for the Voyager Wireless Utility.

Click Next.

Installing Voyager 1055 USB 4

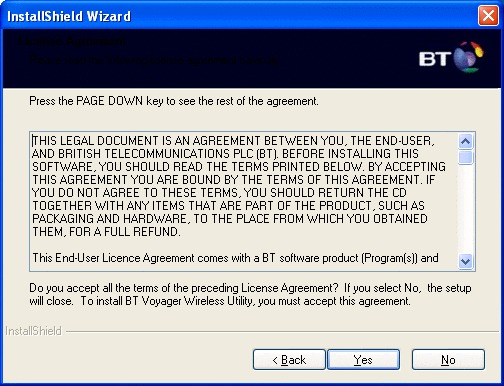

5. Click Yes to accept the Software License Agreement. Clicking No will cancel the installation process.

Installing Voyager 1055 USB 5

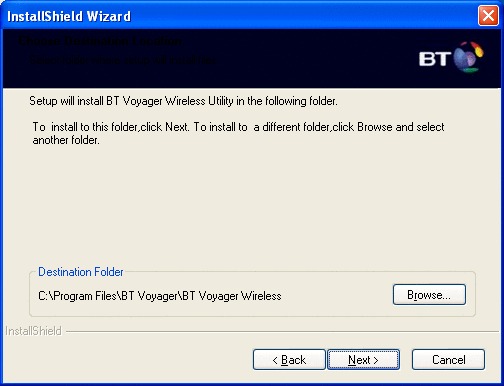

6. Setup will install the Voyager Wireless Utility in the following folder.

Click Next for automatic installation. Windows will copy the files to your system.

Installing Voyager 1055 USB 6

7. The Voyager Wireless Setup is performing the requested operations.

Installing Voyager 1055 USB 7

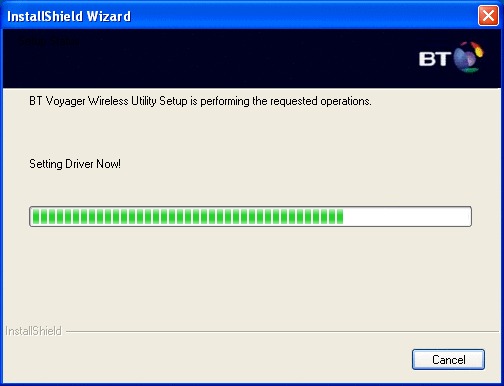

8. The Voyager Wireless Setup is now setting up the driver.

Installing Voyager 1055 USB 8

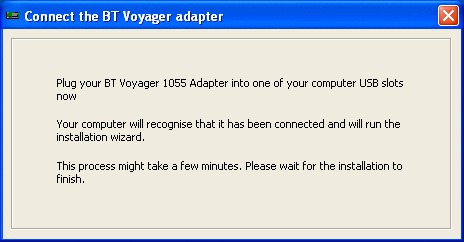

9. Plug your Voyager 1055 into the USB port of your laptop or desktop PC.

Installing Voyager 1055 USB 9

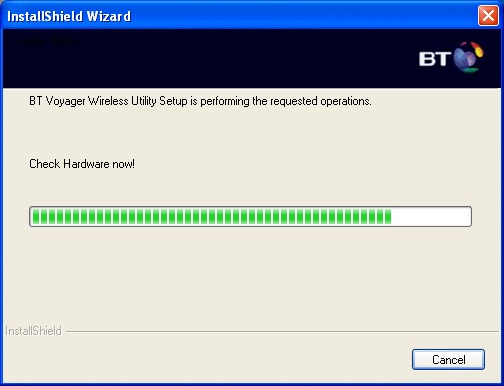

10. The Voyager Wireless Setup is now checking the hardware.

Installing Voyager 1055 USB 10

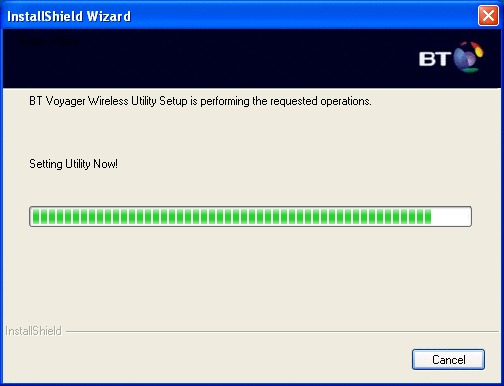

11. The Voyager Wireless Setup is now setting up the wireless utility software.

Installing Voyager 1055 USB 11

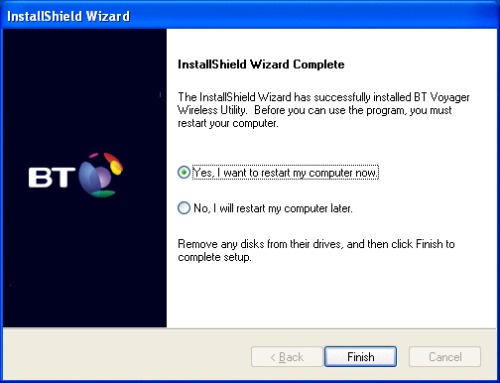

12. The InstallShield Wizard has successfully installed the Voyager Wireless Utility. Before you can use the program, you must restart your computer.

Click on Finish to restart your computer.

Installing Voyager 1055 USB 12

13. You only need to follow instructions below the first time you want to connect to a new network. After the first connection, your network is added to the list of preferred networks and your computer will automatically connect to the network when it becomes available.

To set-up a new network connection for the first time:

  • Click the utility icon in the Windows system tray

Installing Voyager 1055 USB 13

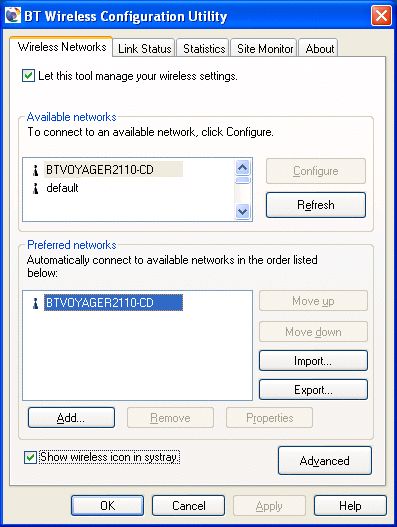

14. This screen lists all the wireless networks currently available and visible.

Follow the instructions below based on whether or not the network is shown in the list.

If you are connecting to a wireless network that is shown in the list, follow these steps:

  • Click the network you wish to connect to.
  • Click >>Add>>
  • If the network you are trying to connect to is secured, you will be prompted to enter the network key. Enter the WEP or WPA-PSK key for your wireless network then click OK. Please refer to the owner of the wireless network or the wireless base station's instructions for where to find the network key.

For the Voyager 2100 Wireless Router the network key is printed on the coloured label on the base of the product.

For security other than WEP or WPA-PSK, please refer to your network administrator.

  • Click OK
  • After a few seconds, the icon in the system tray should indicate that a connection has been made with the wireless network. Your computer is now connected to the wireless network and you can now connect to the Internet.

Installing Voyager 1055 USB 14

15. If you are connecting to a wireless network that does not appear in the list, follow these steps:

  • Click the Manual Add button
  • Before entering information on this page, you should speak to the administrator of the wireless network in order to get all the necessary connection detail: Network name (SSID) and Wireless network key.
  • In Network name (SSID), enter the name of you wireless network.
  • In Wireless network key enter the authentication and encryption type for your wireless network. Then click Properties to enter the network key.
  • Click OK
  • After a few seconds, the icon in the system tray should indicate that a connection has been made with the wireless network. Your computer is now connected to the wireless network and you can now connect to the Internet. Note: if the network you are trying to connect to is not currently in range, the icon will not change until you are in range of the network.

16. To install your Voyager 2110 Router and Laptop Wireless Adapter, please refer to the following documents:
